General Purpose 4 Channel Optocoupler Board



Specs

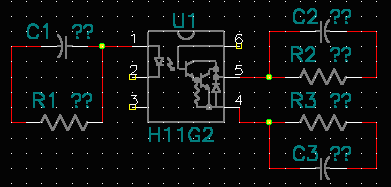

Description: A general purpose 4 channel optocoupler board using H11G2 optocouplers (see above schematic). Resistors, capacitors, and connections to terminal strip are made by customer to allow for complete flexibility.

Channels: 4.

Power Req.:  + 5Vdc or higher (on-board regulator) via plug-in terminal strip.

I/O Interface:  Plug-in terminal strips.

Physical: Approximately 2.75" X 2.75".

Mounting: DIN-rail custom circuit module (included).

Cost

$155. Price is dependent on quantity and is subject to change at any time without notification.

VISA, MasterCard, and AMEX accepted.
